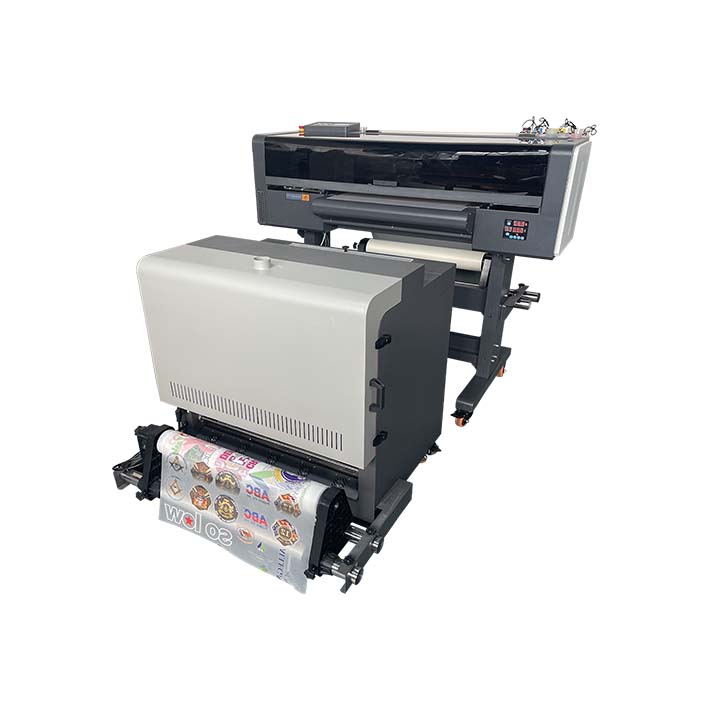

MODEL NUMBER | A1 DTF PRINTER |
| PRINT HEAD | 2*EPSON i3200/XP600 |
| MAX. PRINT WIDTH | A1/600mm |
| PRINT SPEED | i3200:4Pass:13㎡/h，6Pass:11㎡/h，8Pass:8㎡/h XP600:6Pass:10㎡/h，8Pass:8㎡/h |
| PRINT SOFTWARE | MAINTOP6.1 /PHOTOPRINT |
INK | DTF INK C,M,Y,K,W |
| HEATING DRYING FUNCTION | FAR INFRARED CARBON FIBRE HEATING TUBE HEATING |
| MEDIUM OF USE | FABRIC, NYLON, SYNTHETIC FIBRE, CANVAS, LEATHER, SWIMWEAR, EVA, ETC. |
| PRESSING TEMPERATURE | 130-140°C COLD TEAR/HOT TEAR |
| WORKING ENVIRONMENT | TEMPERATURE 20-28°C RELATIVE HUMIDITY: 45-65% PER CENT |
| REWIND FUNCTION | AUTOMATIC INDUCTION REWINDING |
| PARAMETERS AND POWER | RATED VOLTAGE:220V/110V 50HZ/60HZ PRINTER:350W DRYER:2400W |
| MACHINE SIZE | PRINTER:1180(L)*500(W)*480(H)mm DRYER:860(L)*750(W)*1020(H)mm |

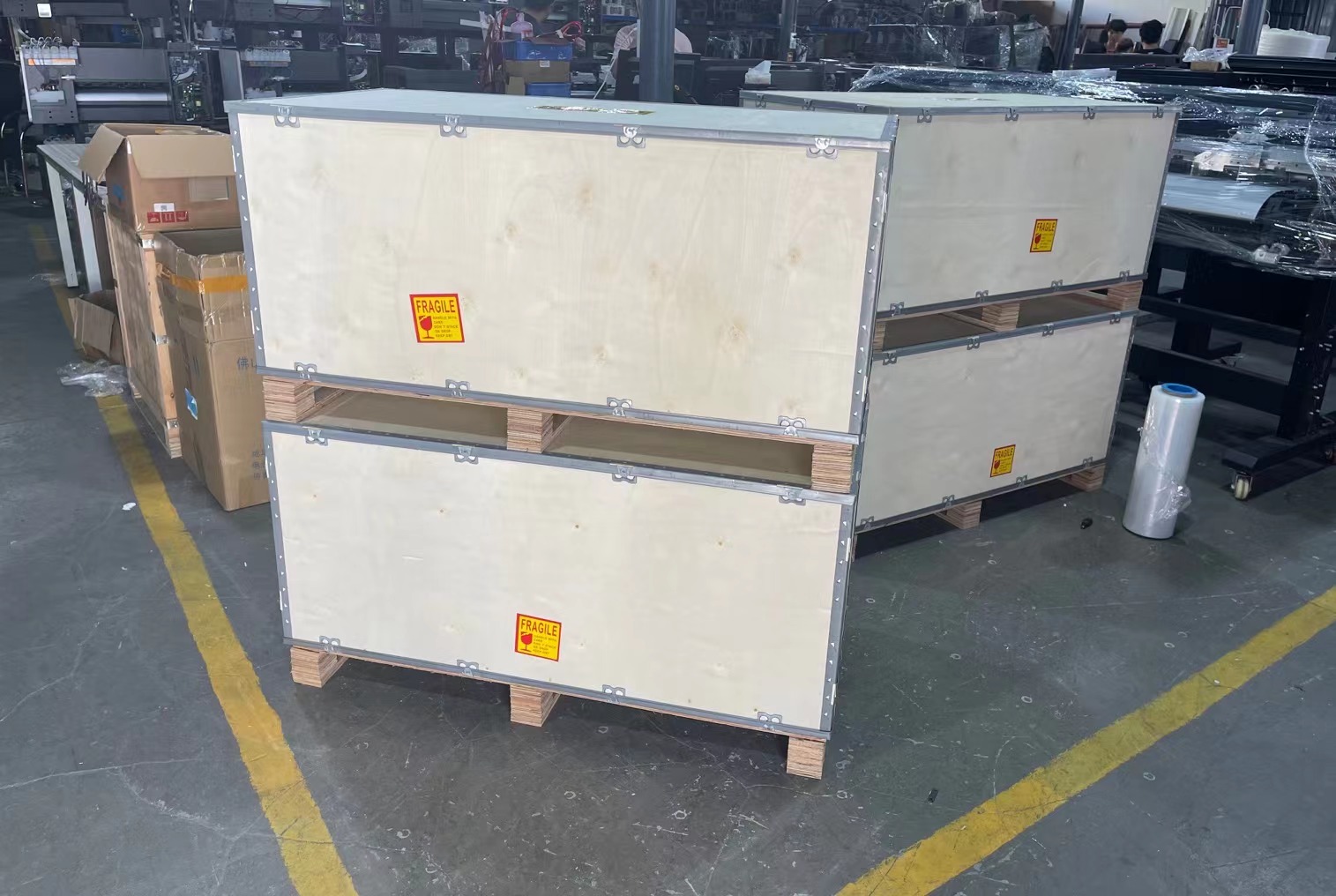

| PACKING SIZE | DRYER 1230(L)mm*620(W)mm*630(H)mm 109KG PRINTER 1130(L)mm*1020(W)mm*1120(H)mm 114KG |
