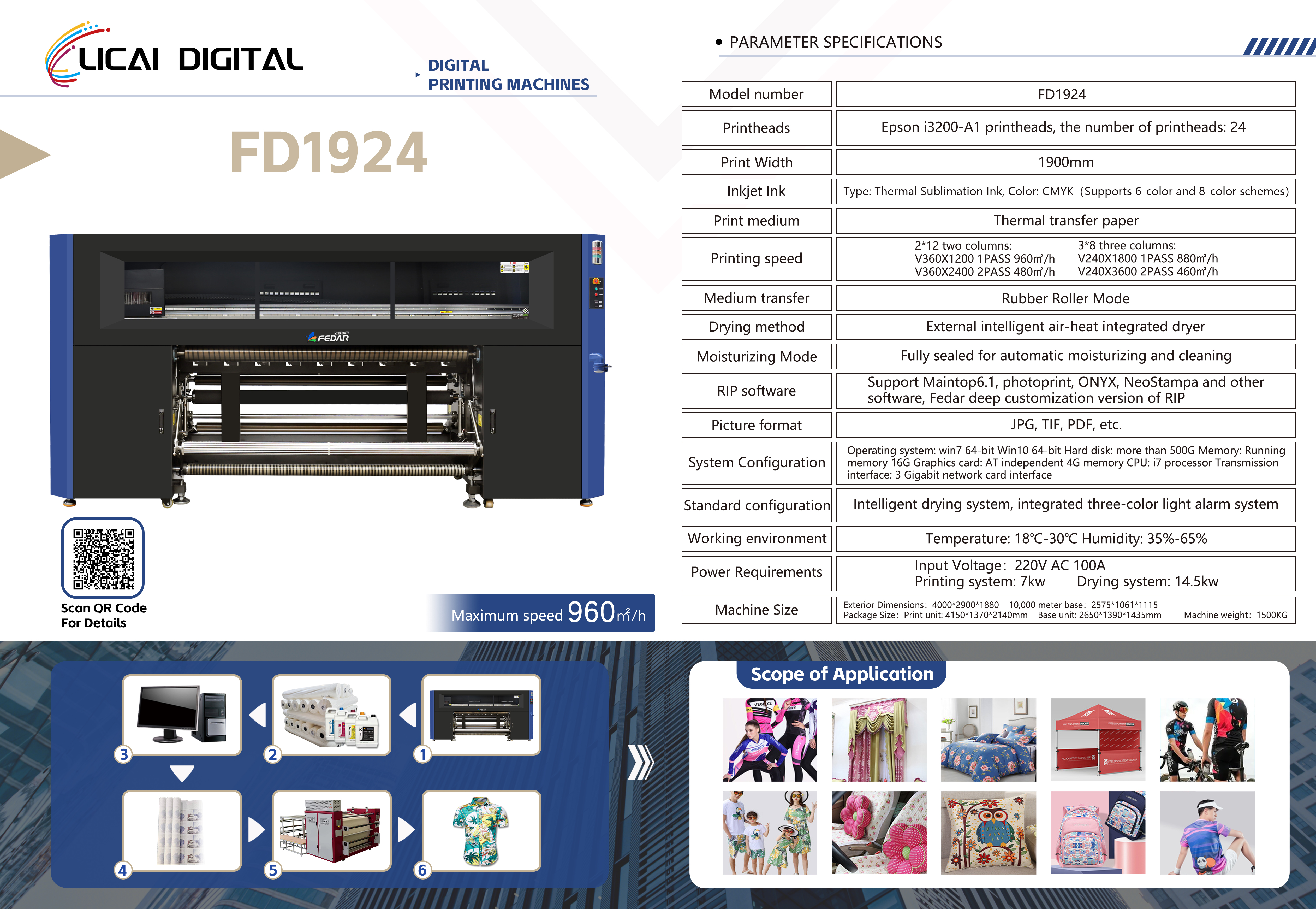

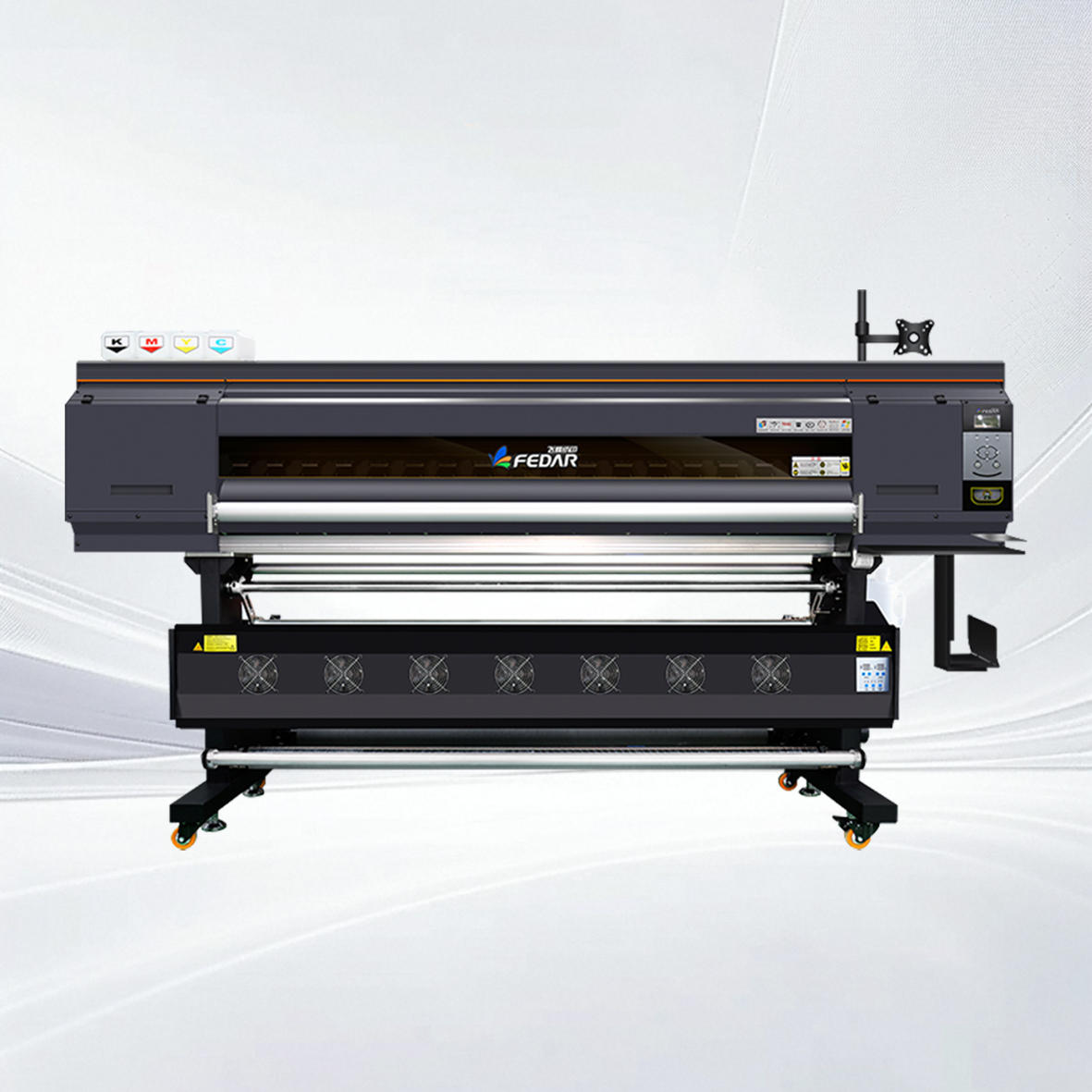

| MACHINE MODEL | FD1924 |
| PRINTHEAD | Epson i3200-A1 printheads, the number of printheads: 24 |
| Print Width | 1900mm |
| INKJET INK | TYPE: HEAT SUBLIMATION INK COLOR: CMYK |
| PRINT MEDIUM | THERMAL TRANSFER PAPER |
| Printing speed | 2*12 two columns:V360X1200 1PASS 960㎡/h V360X2400 2PASS 480㎡/h 3*8 three columns:V240X1800 1PASS 880㎡/h V240X3600 2PASS 460㎡/h |

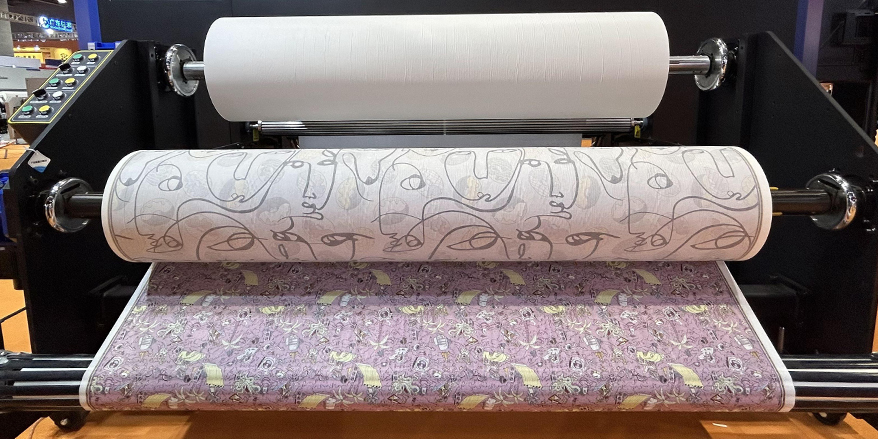

| MEDIUM TRANSFER | Rubber Roller Mode |
| DRYING METHOD | EXTERNAL INTELLIGENT AIR-HEAT INTEGRATED DRYER |

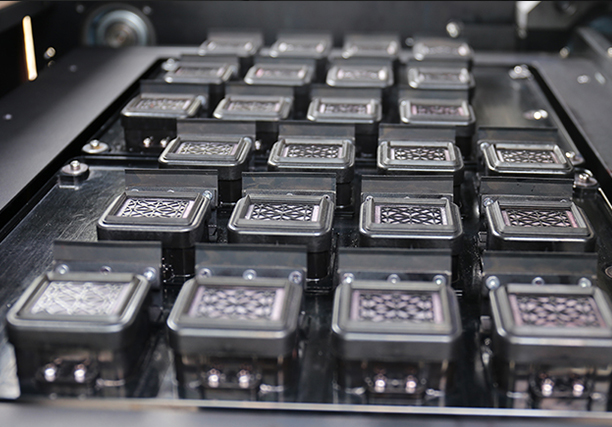

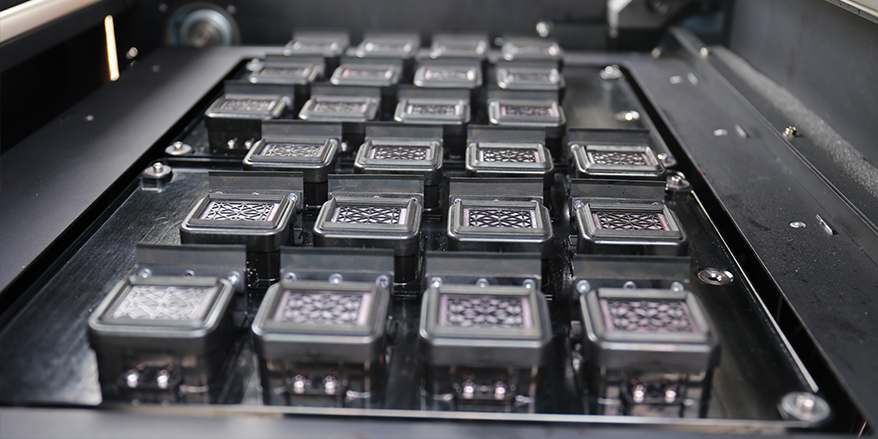

| MOISTURIZING MODE | FULLY SEALED FOR AUTOMATIC MOISTURIZING AND CLEANING |
| RIP SOFTWARE | Support Maintop6.1, photoprint, ONYX, NeoStampa and other software, Fedar deep customization version of RlP |
| PICTURE FORMAT | JPG, TIF, PDF, ETC. |
| COMPUTER CONFIGURATION | Operating system: win7 64-bit Win10 64-bit Hard disk: more than 500G Memory: Running memory 16G Graphics card: AT independent 4G memory CPU: i7 processor Transmission interface:3 Gigabit network card interface |
| STANDARD CONFIGURATION | Intelligent drying system, integrated three-color light alarm system |
| WORKING ENVIRONMENT | TEMPERATURE: 18°C-30°C,HUMIDITY: 35%-65% |
| POWER REQUIREMENTS | Input Voltage: 220V AC 100A Printing system: 7kw Drying system: 14.5kw |
| MACHINE SIZE | Exterior Dimensions: 4000*2900*1880 10,000 meter base: 2575*1061*1115 Package Size: Print unit: 4150*1370*2140mm Base unit: 2650*1390*1435mm Machine weight: 1500KG |
