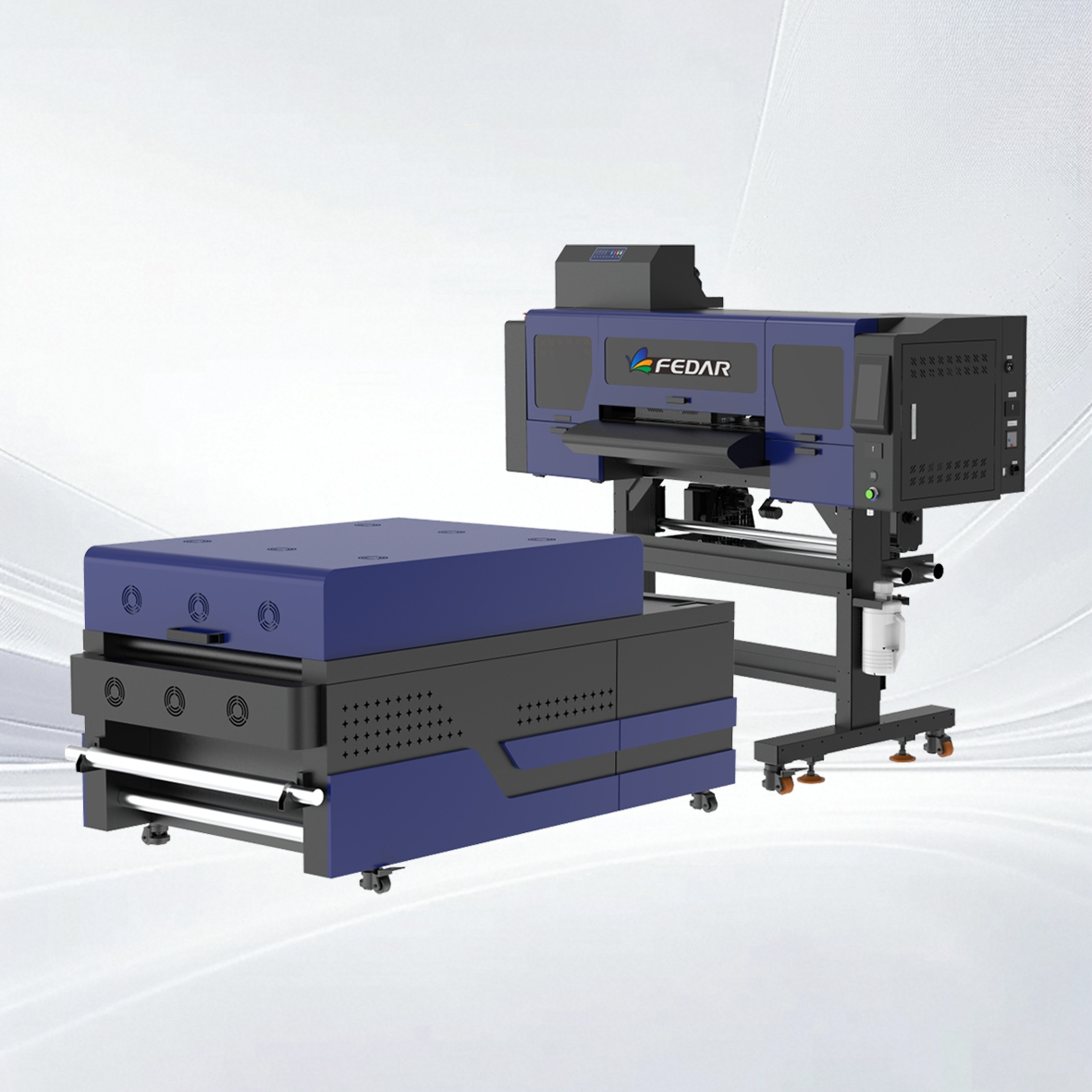

Model number | FD70-4 DTF Printer |
Printheads | 4*EPSON i3200-A1 Printheads |
Maximum print width | 600mm |
Printing speed | 4PASS 22㎡/h 6PASS 14㎡/h 8PASS 10㎡/h |
| Printed material | PET Film |
| Printing Software | Maintop, Flexiprint |

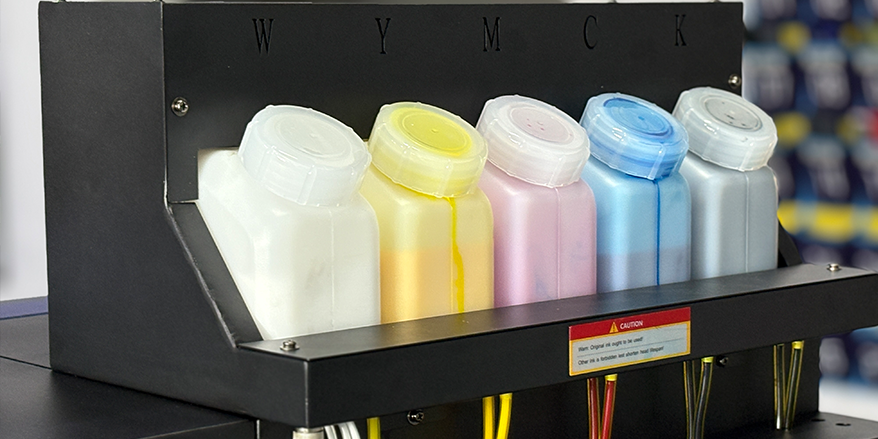

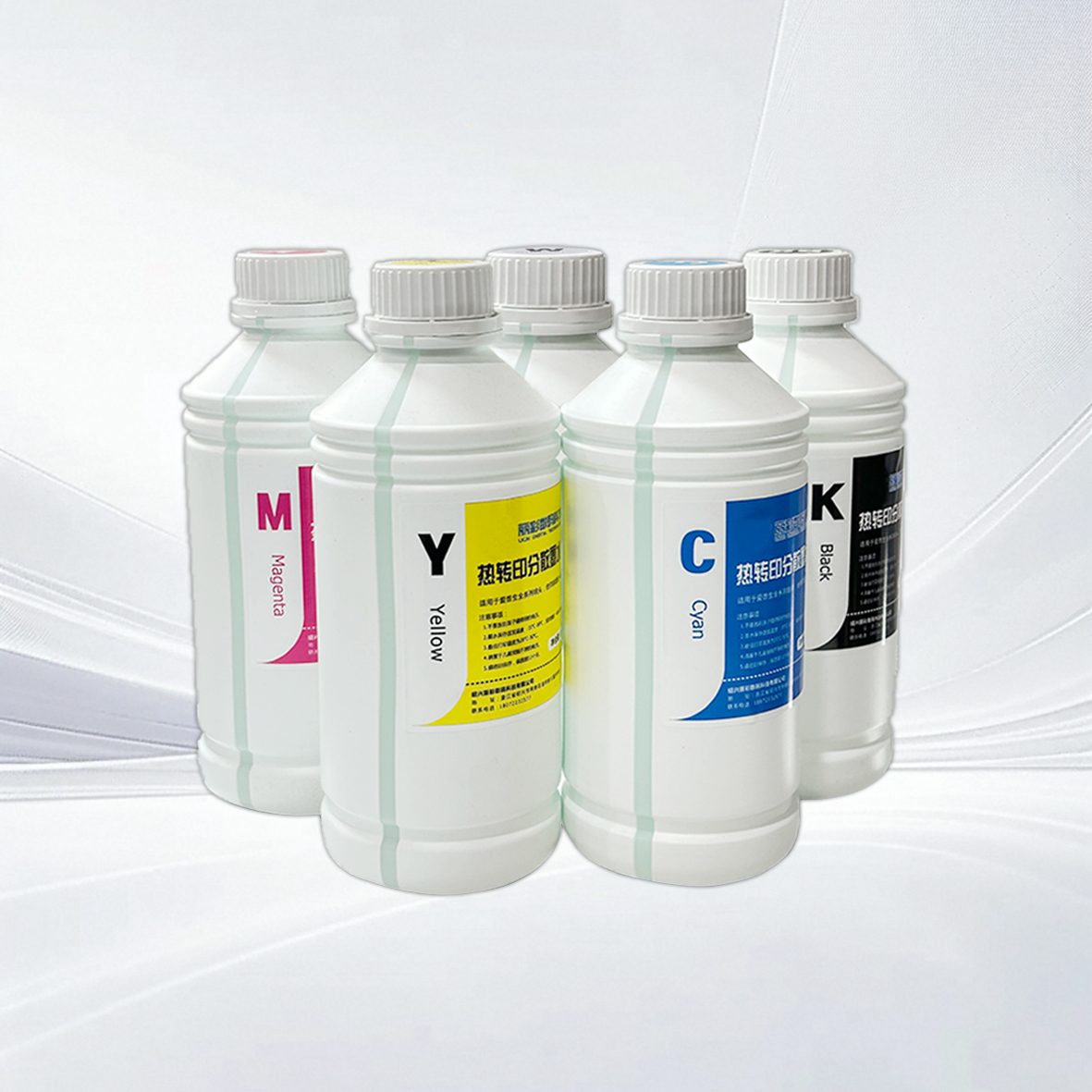

| Inks | DTFInks CMYK+W |
| Heating and drying function | Far infrared carbon fiber heating tube heating |
| Applicable medium | Fabric,nylon, chemical fiber, canvas, leather, swimsuit, EVA, etc. |
| Pressing temperature | 130-140°C Cold tear/ Hot tear |
| Working environment | Temp:15°C-30°C Humidity level:35%-65% |
| File format | TIFF, JPG, EPS, PDF,etc. |
| System Configuration | HDD: NTFS, C drive space: 100G or more, HDD: WG500G GPU: ATl discrete GPU. RAM: 4G, CPU: Intel i5/i7,G-Ethernet |
| Power | 210-230V,50/60HZ,16A Printer power:1000W Dryer power: max. 3500W |
| Machine size and weight | Printer size:1865(L)mm*676(W)mm*1840(H)mm 205KG Package Size:2060(L)mm*990(W)mm*960(H)mm |
