| MACHINE MODEL | FD3324E |

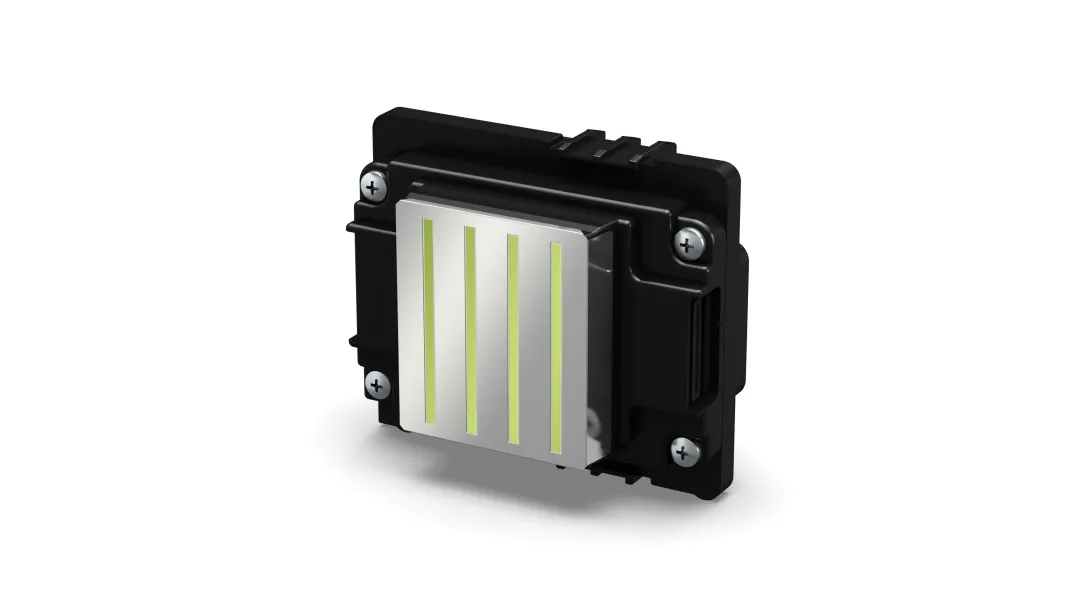

| PRINTHEAD | Epson i3200-A1 printheads, the number of printheads: 24 |
| Printing speed | 3.3m wide 1080M2/H 240*1800dpi |

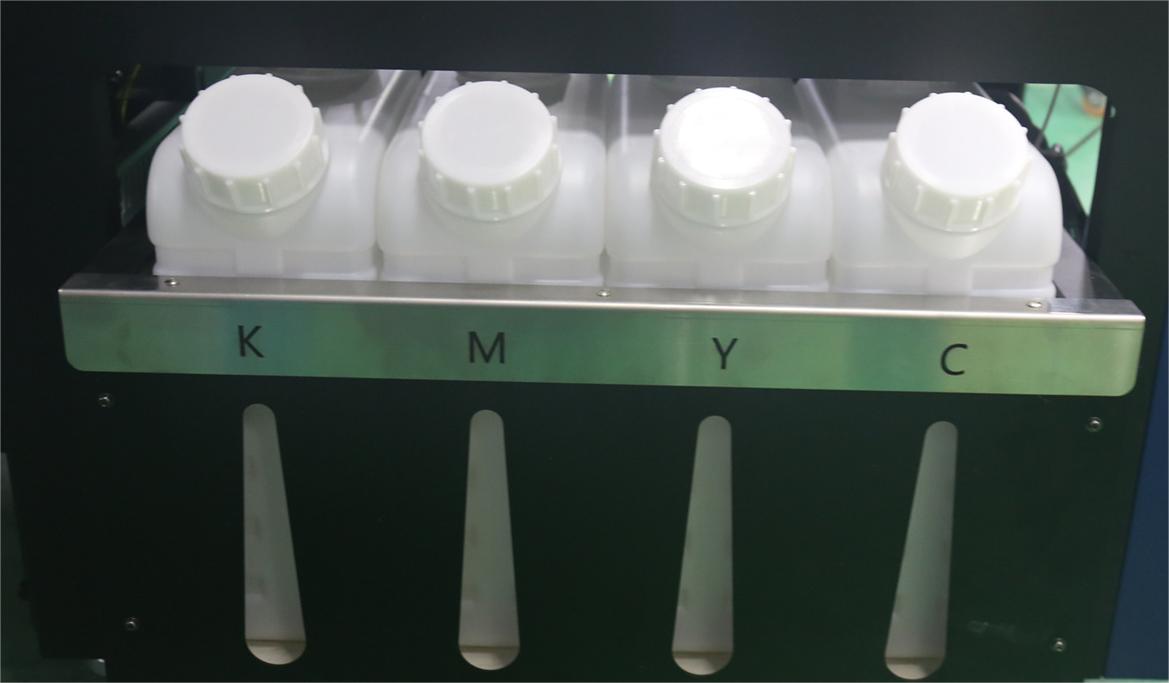

| INKJET INK | Type: Thermal Sublimation Ink, Color: CMYK |
| Effective width | 3300mm |

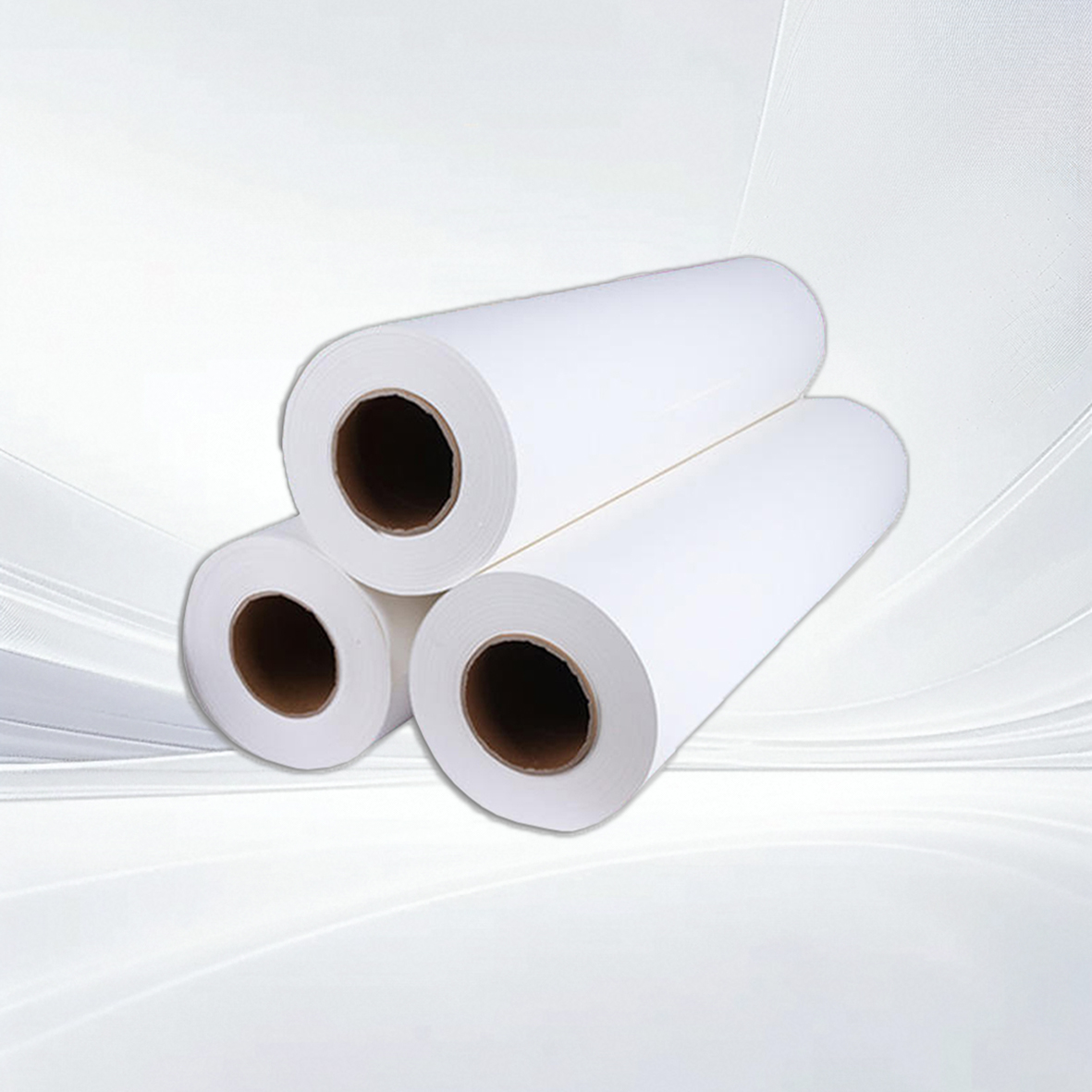

| Print medium | Thermal transfer paper |

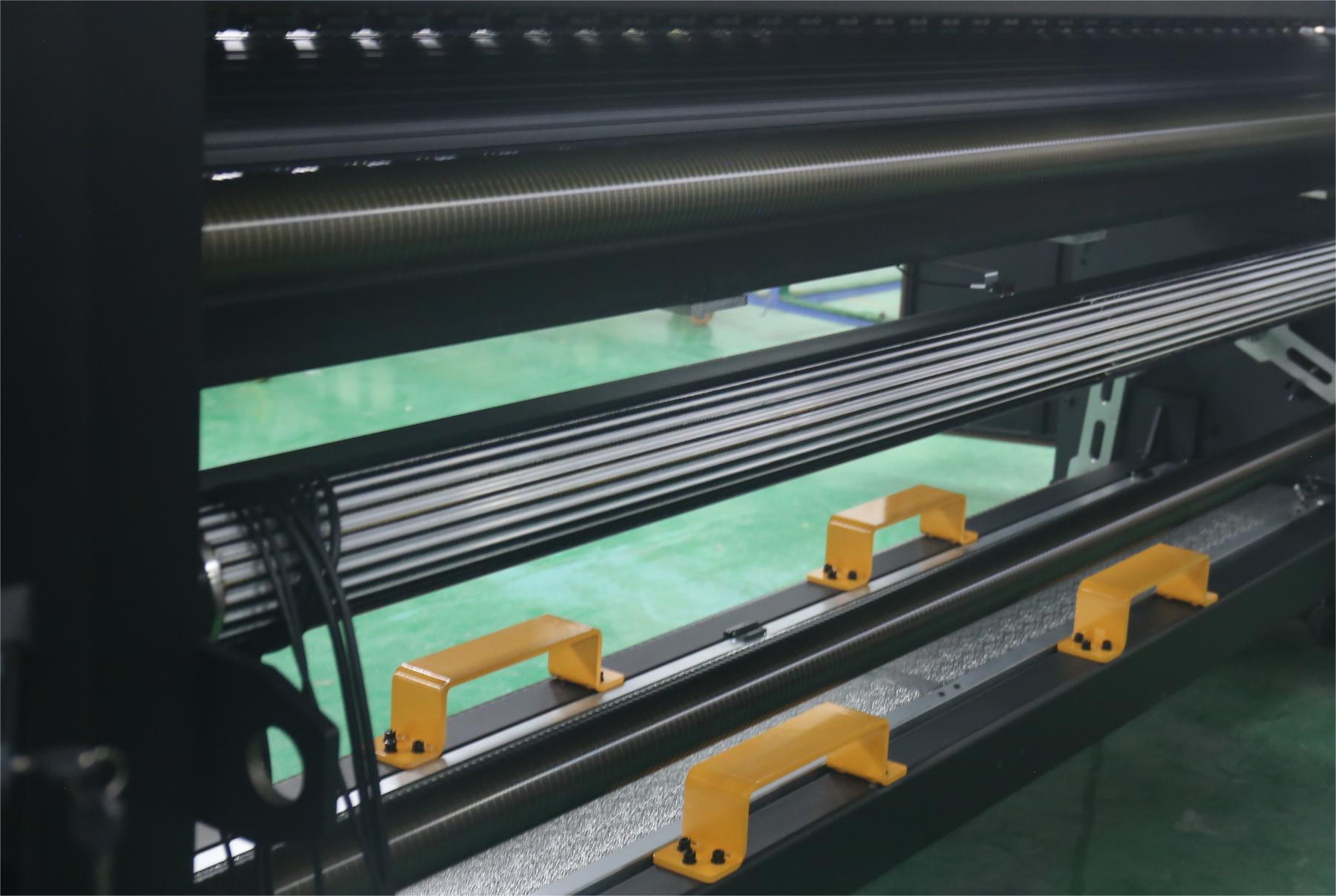

| MEDIUM TRANSFER | Pressure roller conveyor |
| DRYING METHOD | EXTERNAL INTELLIGENT AIR-HEAT INTEGRATED DRYER |

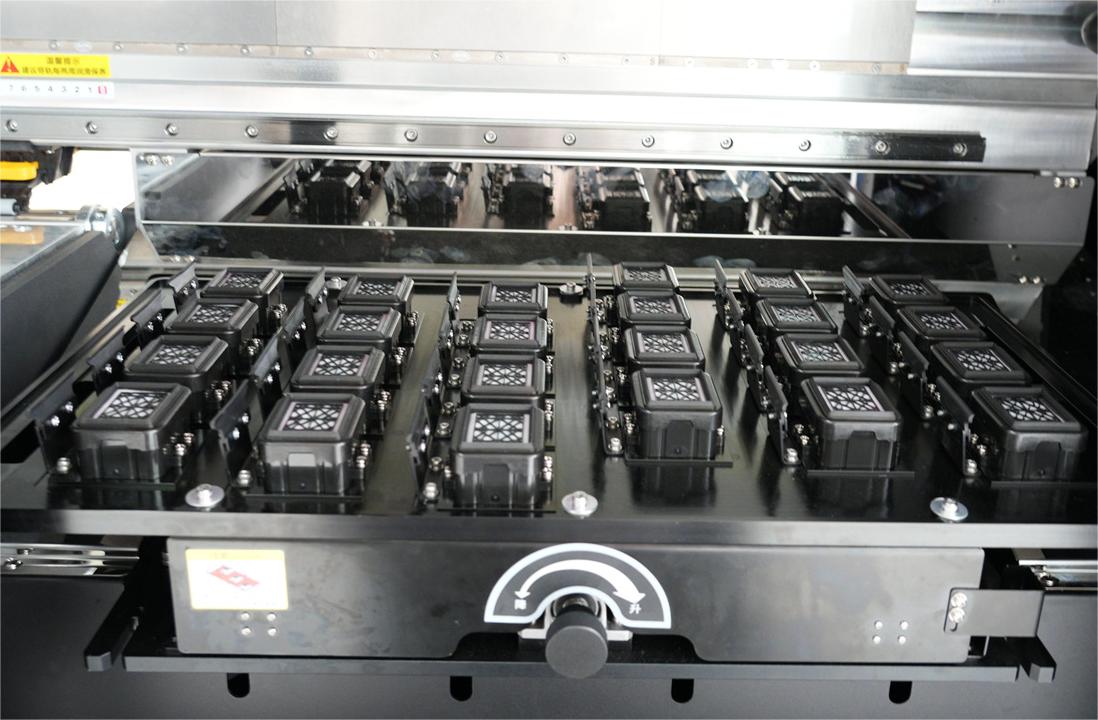

| MOISTURIZING MODE | FULLY SEALED FOR AUTOMATIC MOISTURIZING AND CLEANING |
| RIP SOFTWARE | Support Maintop7.0, photoprint, ONYX, NeoStampa and other software, standard with Maintop7.0 |
| PICTURE FORMAT | JPG, TIF, PDF, ETC. |
| System Configuration | Operating system: win7/10/11 64-bit Hard disk: more than 500G Memory: Running memory 16G Graphics card: AT independent 4G memory CPU: i7 processor Transmission interface: 4 Gigabit network card interface |
| STANDARD CONFIGURATION | Intelligent drying system, integrated three-color light alarm system |
| WORKING ENVIRONMENT | Temp:18℃℃-30'c Humidity level:35%-65% |
| POWER REQUIREMENTS | Input Voltage:380VAC 36KW 100A Printing system:220VAC 9KW-43A Drying systems: 380VAC 27KW 57A |

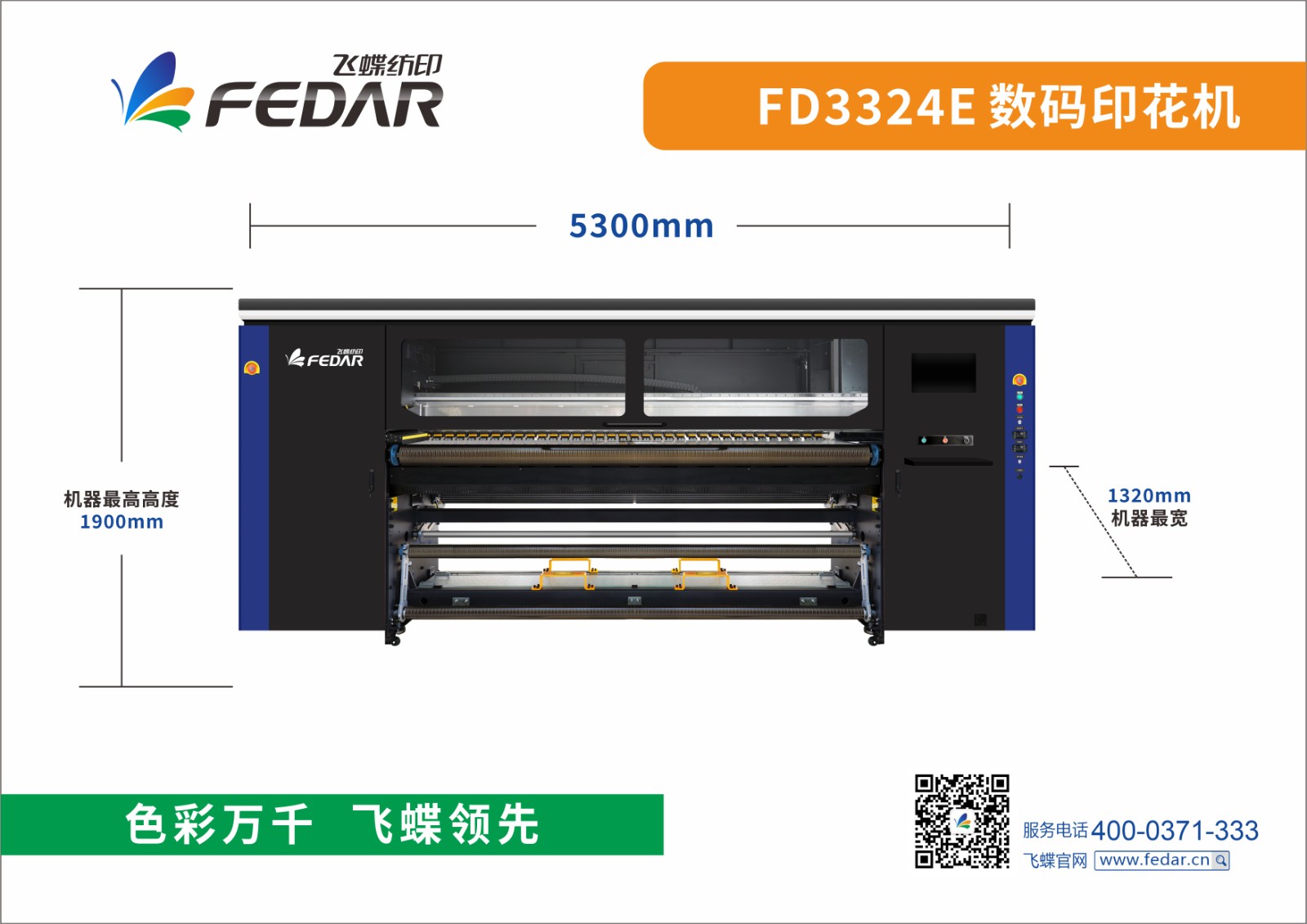

| MACHINE SIZE | Exterior Dimensions: 5300*3240*1900mm 10,000 meter base:3970*1820*1200mm Package Size: 5430*1150*2200mm |
