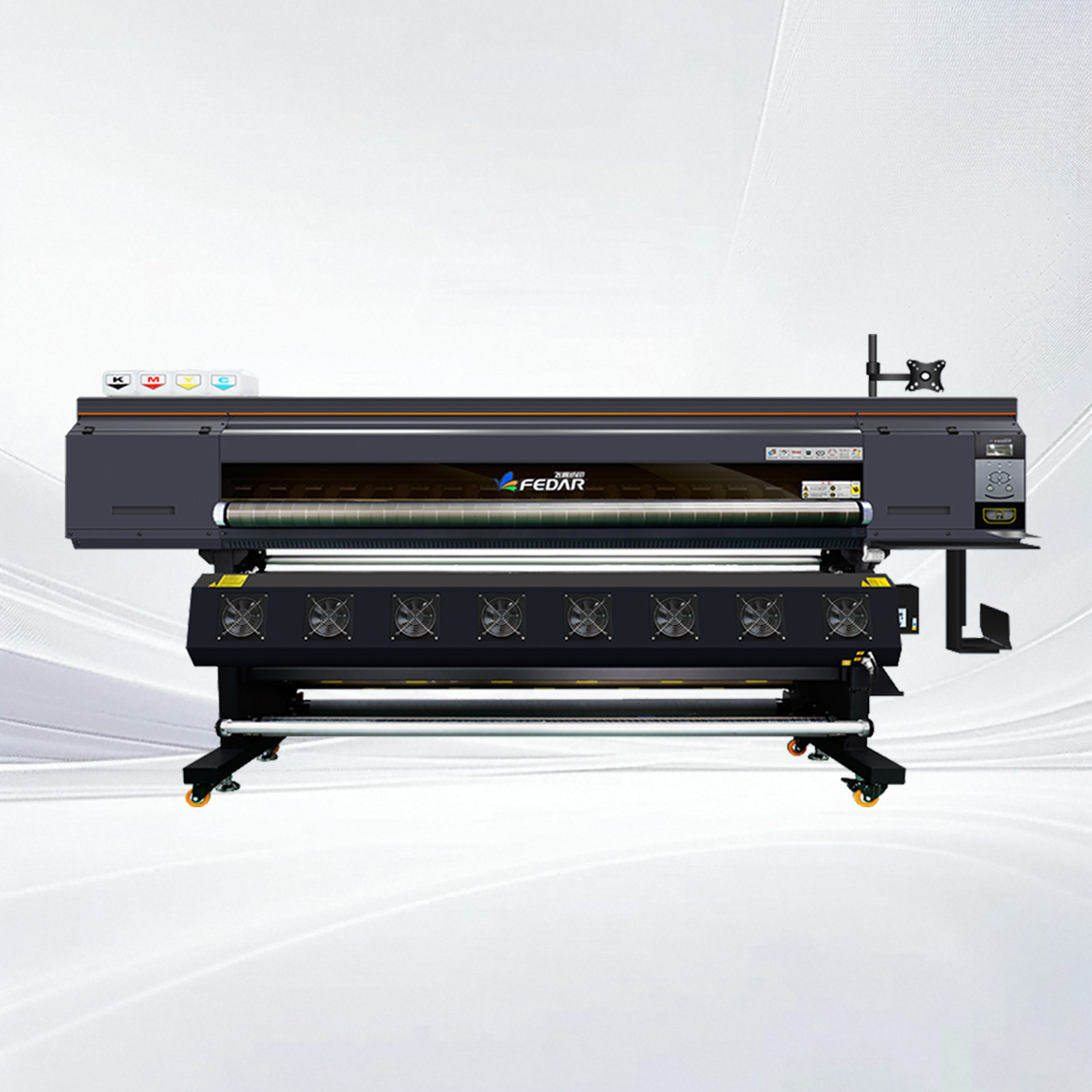

| MACHINE MODEL | FD51915E |
| PRINTHEAD | 15*EPSON i3200-A1 printheads, Attributes: auto-clean, auto-flash moisturizing function |
| PRINTING SPEED | High Speed Mode:1Pass:610㎡/h，2Pass:300㎡/h High Precision Mode: 1Pass:430㎡/h.2Pass:220㎡/h |

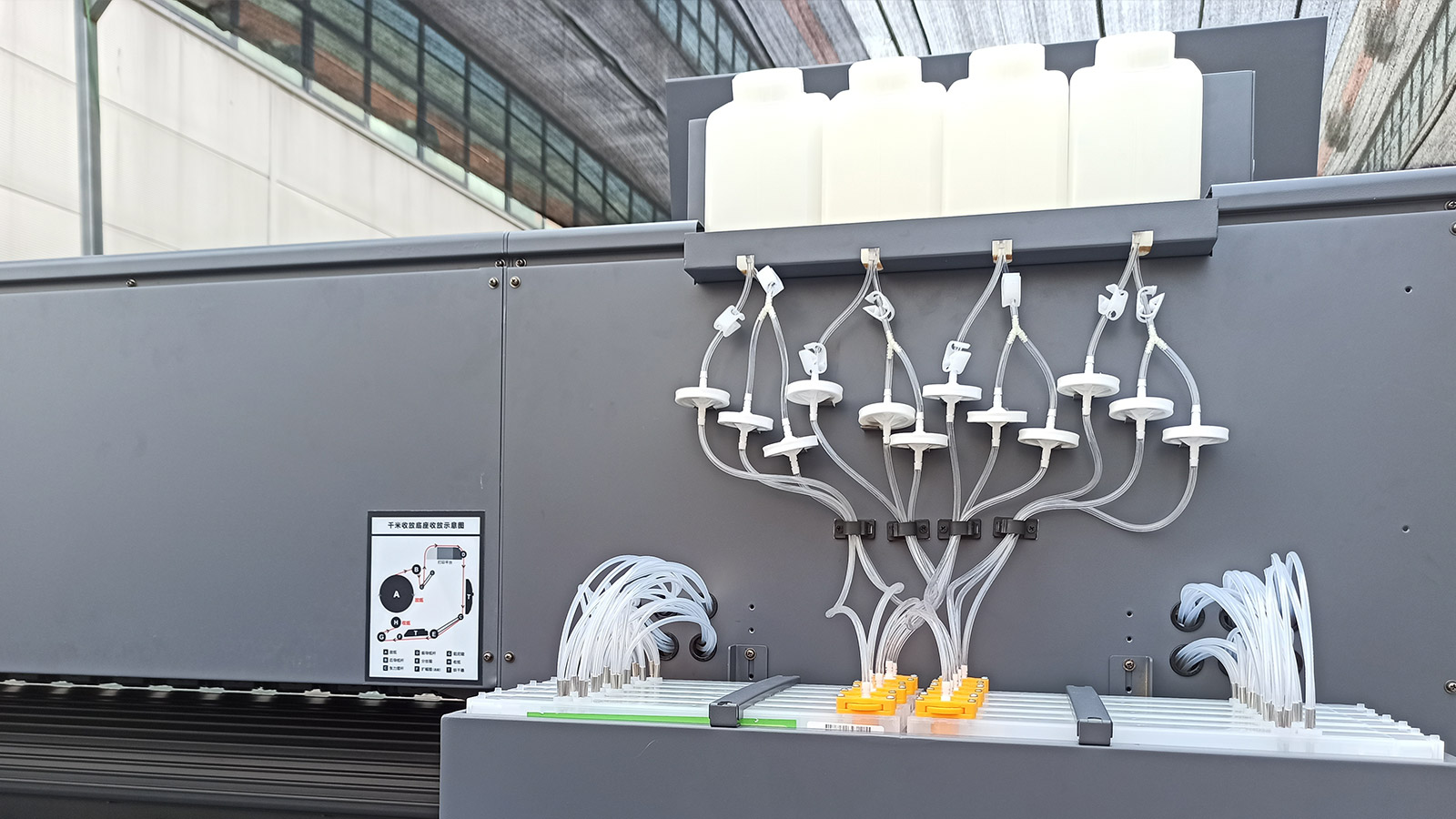

| INKJET INK | Type: Thermal Sublimation Ink, Color: CMYK |
| EFFECTIVE WIDTH | 1900MM |
| PRINT MEDIUM | THERMAL TRANSFER PAPER |

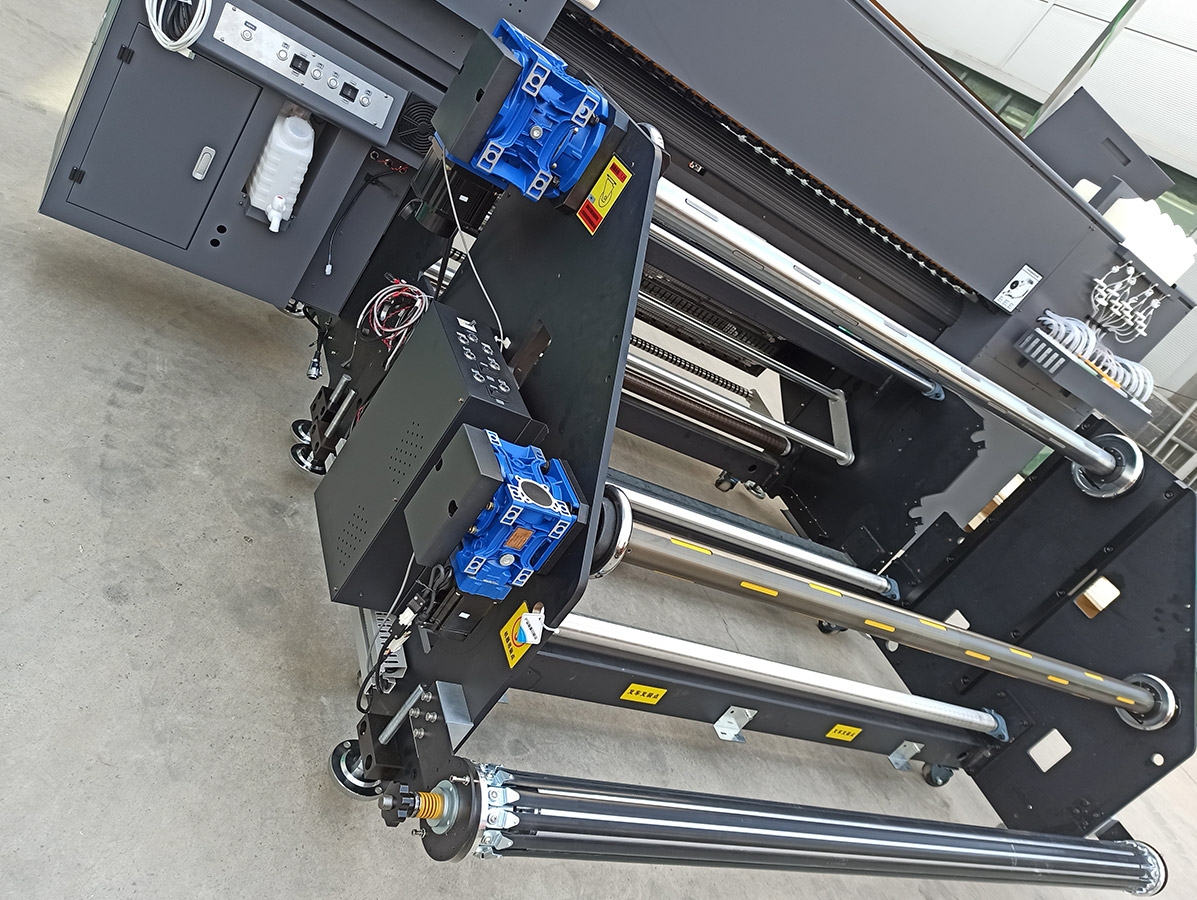

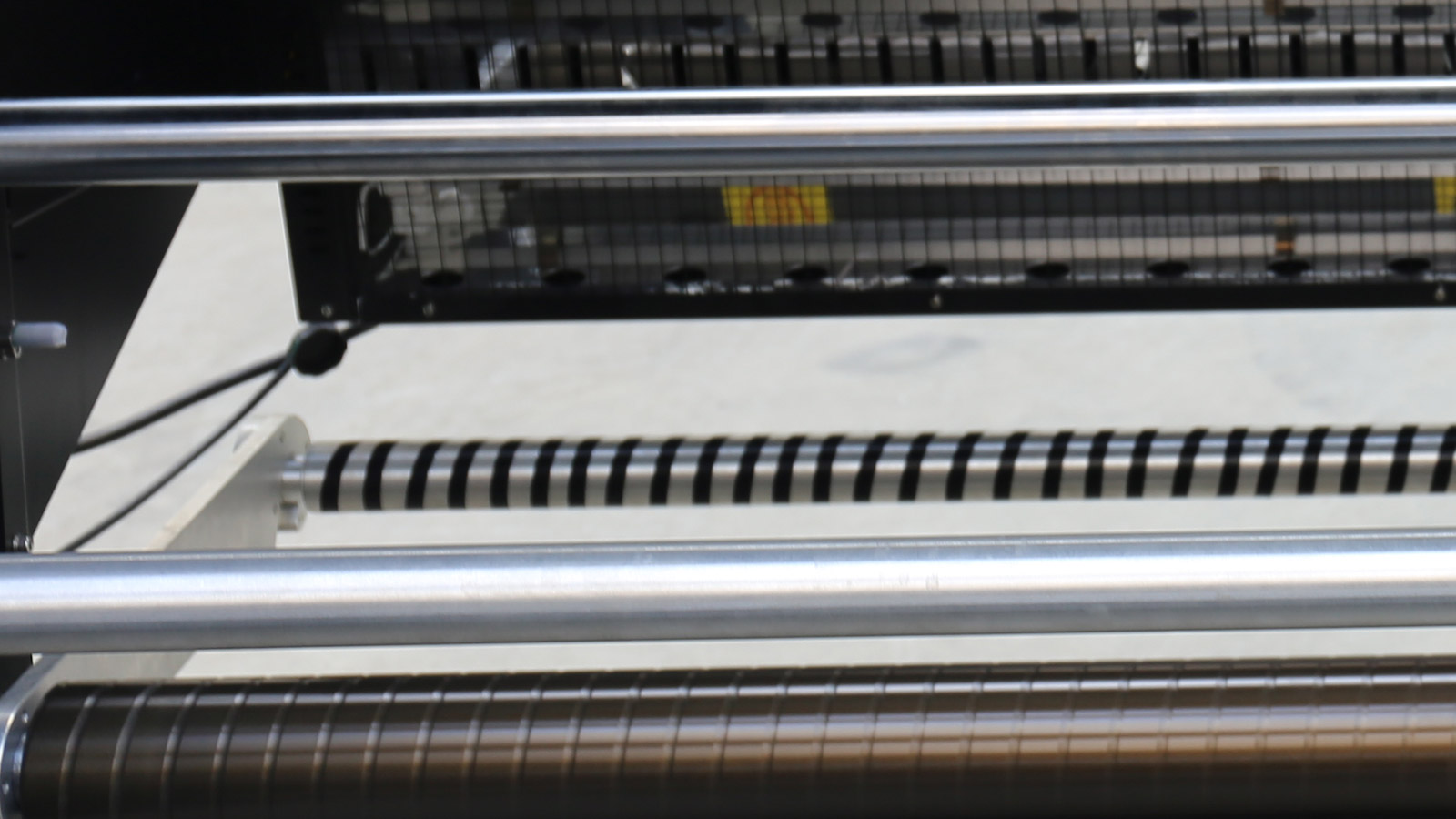

| MEDIUM TRANSFER | PRESSURE ROLLER CONVEYOR |

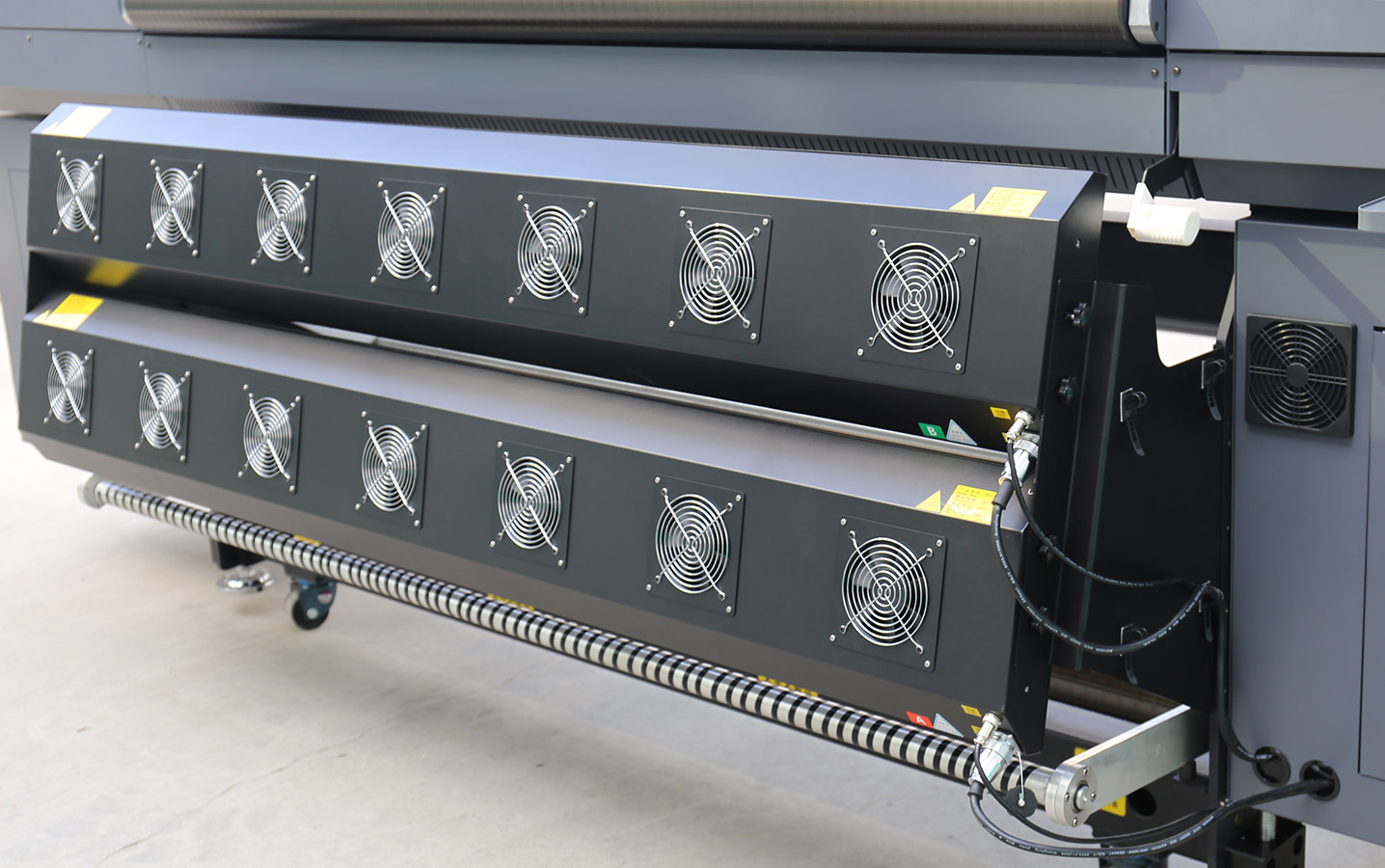

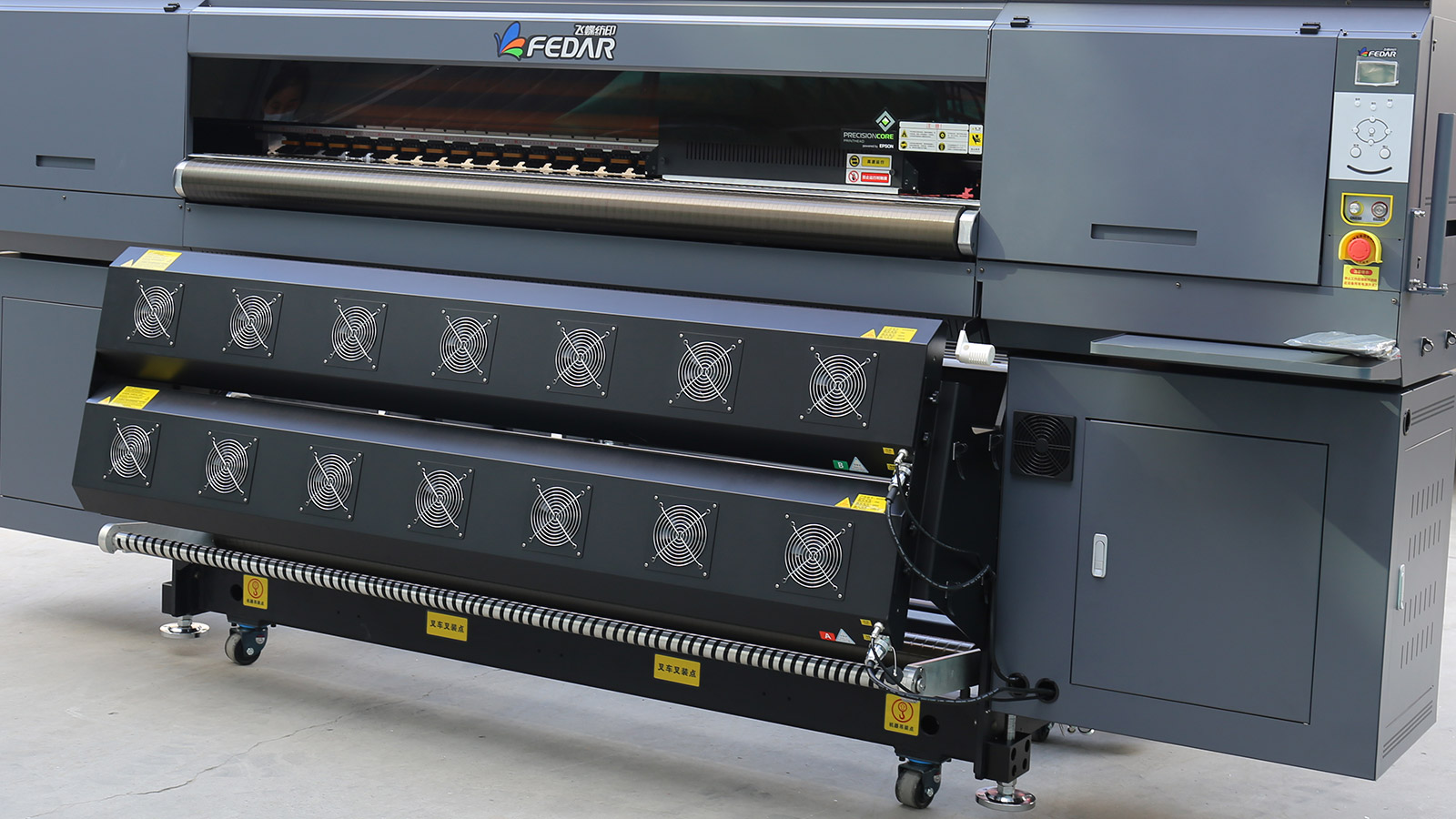

| DRYING METHOD | EXTERNAL INTELLIGENT AIR-HEAT INTEGRATED DRYER |

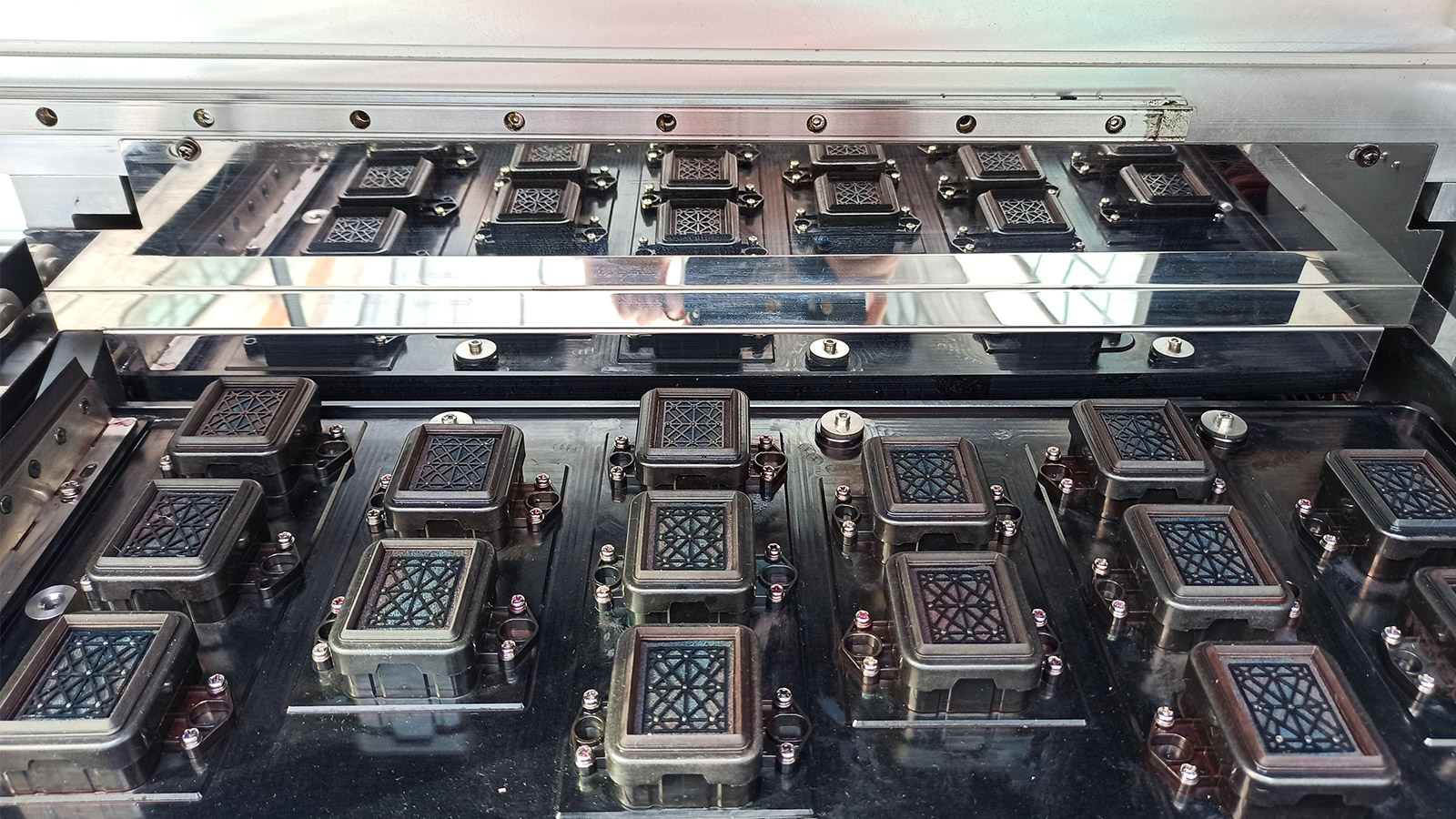

| MOISTURIZING MODE | FULLY SEALED FOR AUTOMATIC MOISTURIZING AND CLEANING |
| RIP SOFTWARE | SUPPORTS MAINTOP6.1, PHOTOPRINT, ONYX, NEOSTAMPA AND OTHER SOFTWARE. MAINTOP6.1 COMES STANDARD. |
| PICTURE FORMAT | JPG, TIF, PDF, ETC. |
| COMPUTER CONFIGURATION | Win7 64-bit / Win10 64-bit, Hard Disk: 500G or more (SsD recommended) Running Memory: 16G Graphics Card: ATl Solo 4G RAM, CPU: i7 processor, Transfer Interface: USB3.0 |
| STANDARD CONFIGURATION | Intelligent drying system, liquid level alarm system |
| WORKING ENVIRONMENT | TEMPERATURE: 18°C-30°C,HUMIDITY: 35%-65% |
| POWER REQUIREMENTS | Input Voltage:210-230VAC 70A Total power of equipment: 15.5KW Drying systems: Power 10800W |

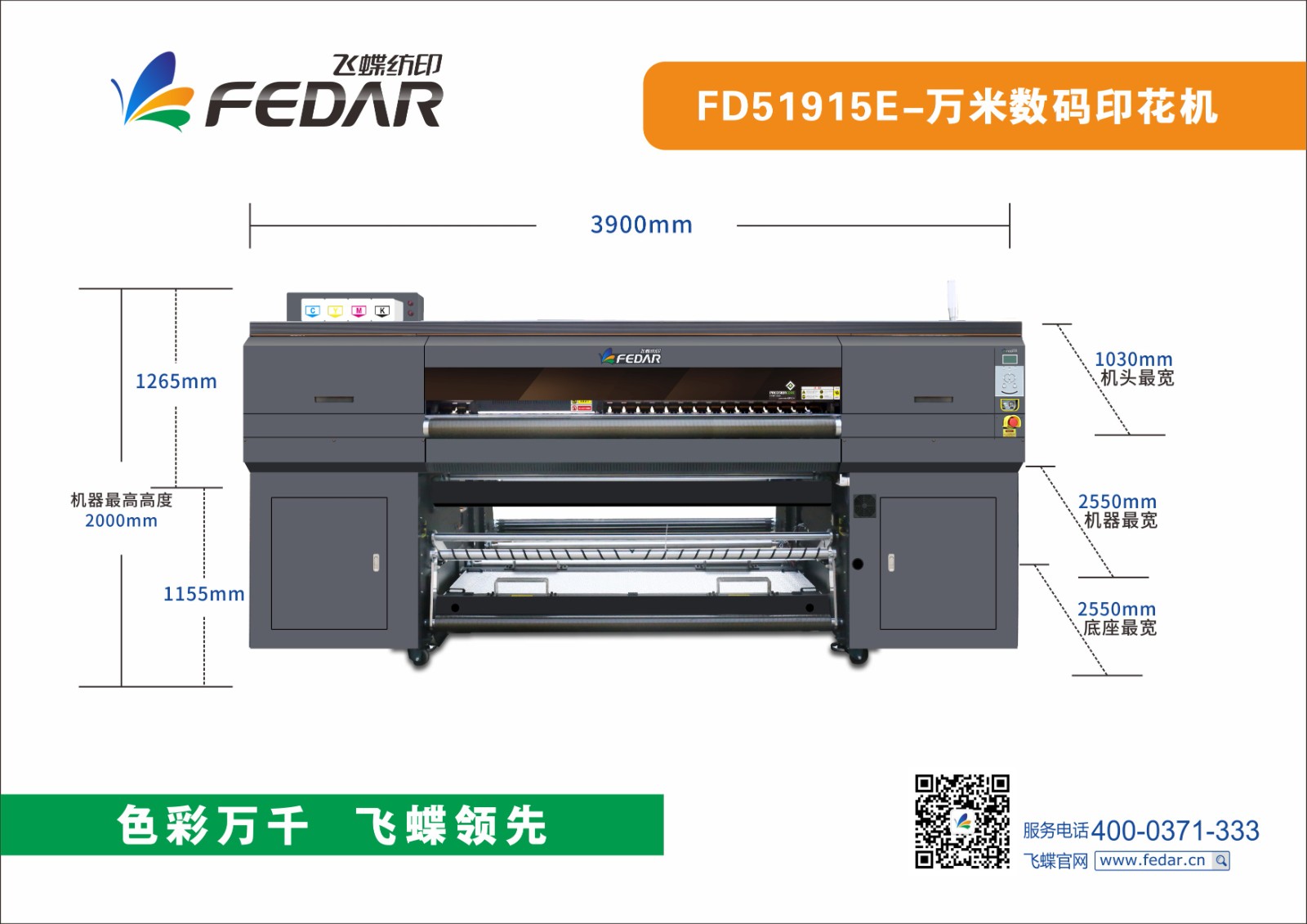

| MACHINE SIZE | Exterior Dimensions: 3900 x1540 x 2000 mm; 2700 x1100 x 1365mm(10,000 meter base) Package Size:3970x1300x1930 mm Total weight:2000KG |
