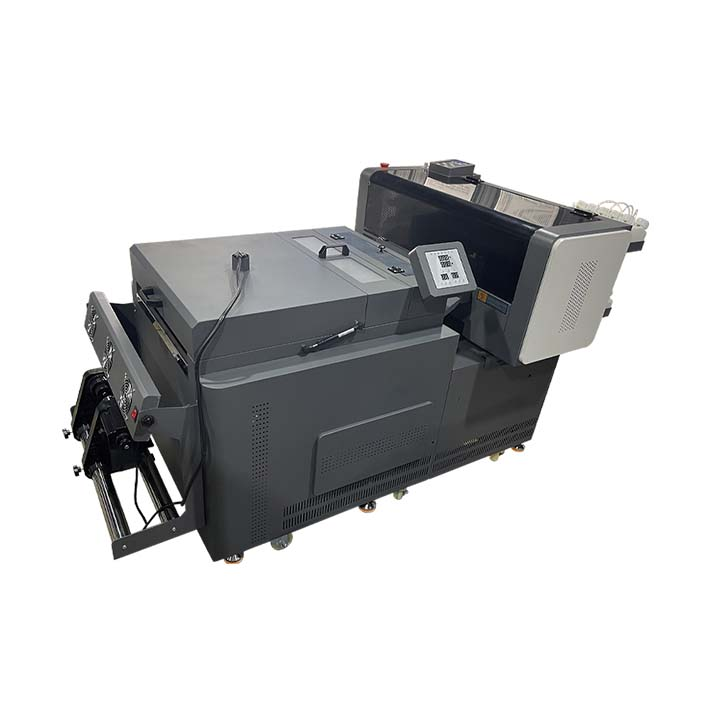

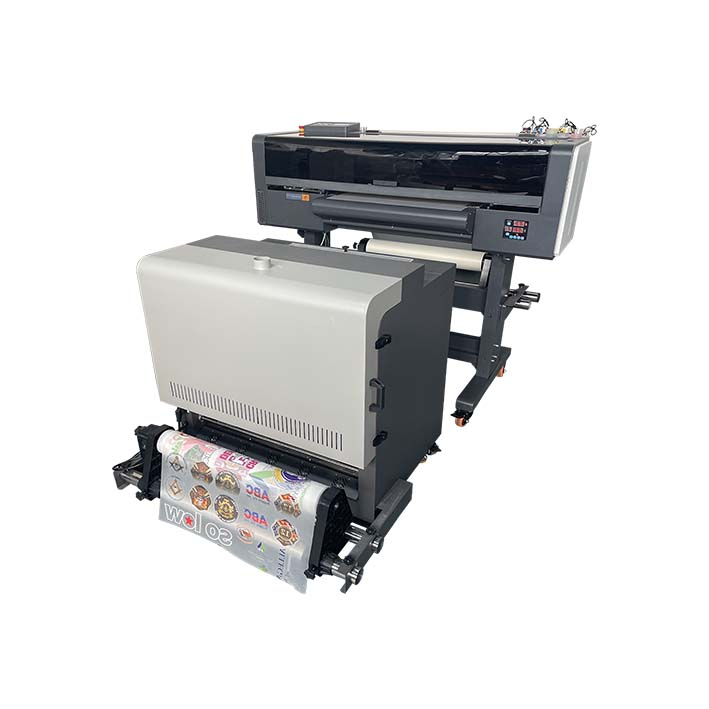

MODEL NUMBER | A2 DTF PRINTER |
| PRINT HEAD | 2*EPSON i3200/XP600 |
| MAX. PRINT WIDTH | A2/450mm |
| PRINT SPEED | i3200:4Pass:12㎡/h，6Pass:8㎡/h，8Pass:6㎡/h XP600:6Pass:4.5㎡/h，8Pass:3.5㎡/h |
| PRINT SOFTWARE | MAINTOP6.1 /PHOTOPRINT |
INK | DTF INK C,M,Y,K,W |
| HEATING DRYING FUNCTION | FAR INFRARED CARBON FIBRE HEATING TUBE HEATING |
| MEDIUM OF USE | FABRIC, NYLON, SYNTHETIC FIBRE, CANVAS, LEATHER, SWIMWEAR, EVA, ETC. |
| PRESSING TEMPERATURE | 130-140°C COLD TEAR/HOT TEAR |
| WORKING ENVIRONMENT | TEMPERATURE 20-28°C RELATIVE HUMIDITY: 45-65% PER CENT |
| REWIND FUNCTION | AUTOMATIC INDUCTION REWINDING |
| PARAMETERS AND POWER | RATED VOLTAGE:220V/110V 50HZ/60HZ PRINTER:350W DRYER:2400W |
| MACHINE SIZE | PRINTER:1000(L)*500(W)*480(H)mm DRYER:960(L)*900(W)*820(H)mm |
| PACKING SIZE | DRYER 1070(L)mm*620(W)mm*640(H)mm 65KG PRINTER 1200(L)mm*1140(W)mm*870(H)mm 120KG |
